Dry Type - Fan Capacitors

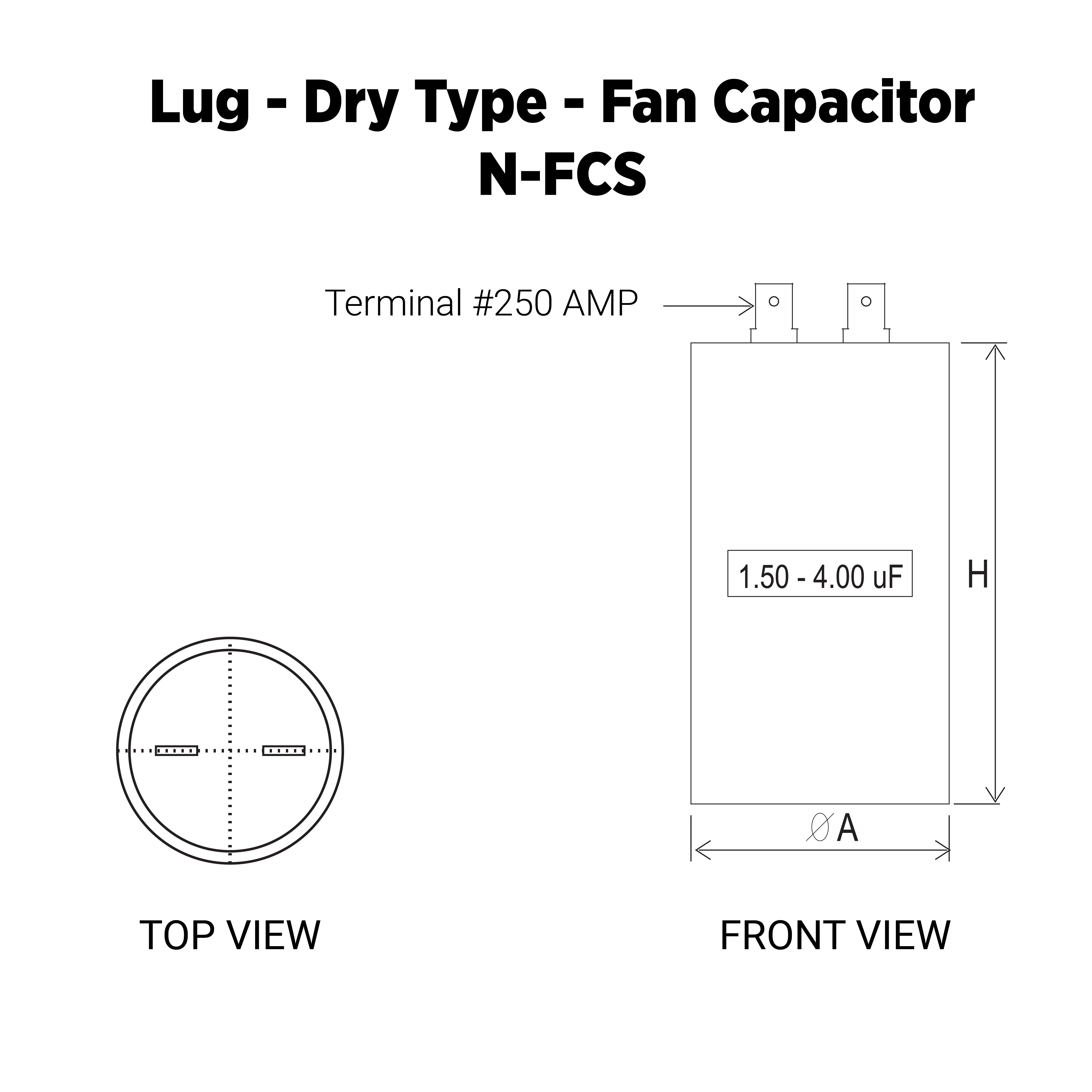

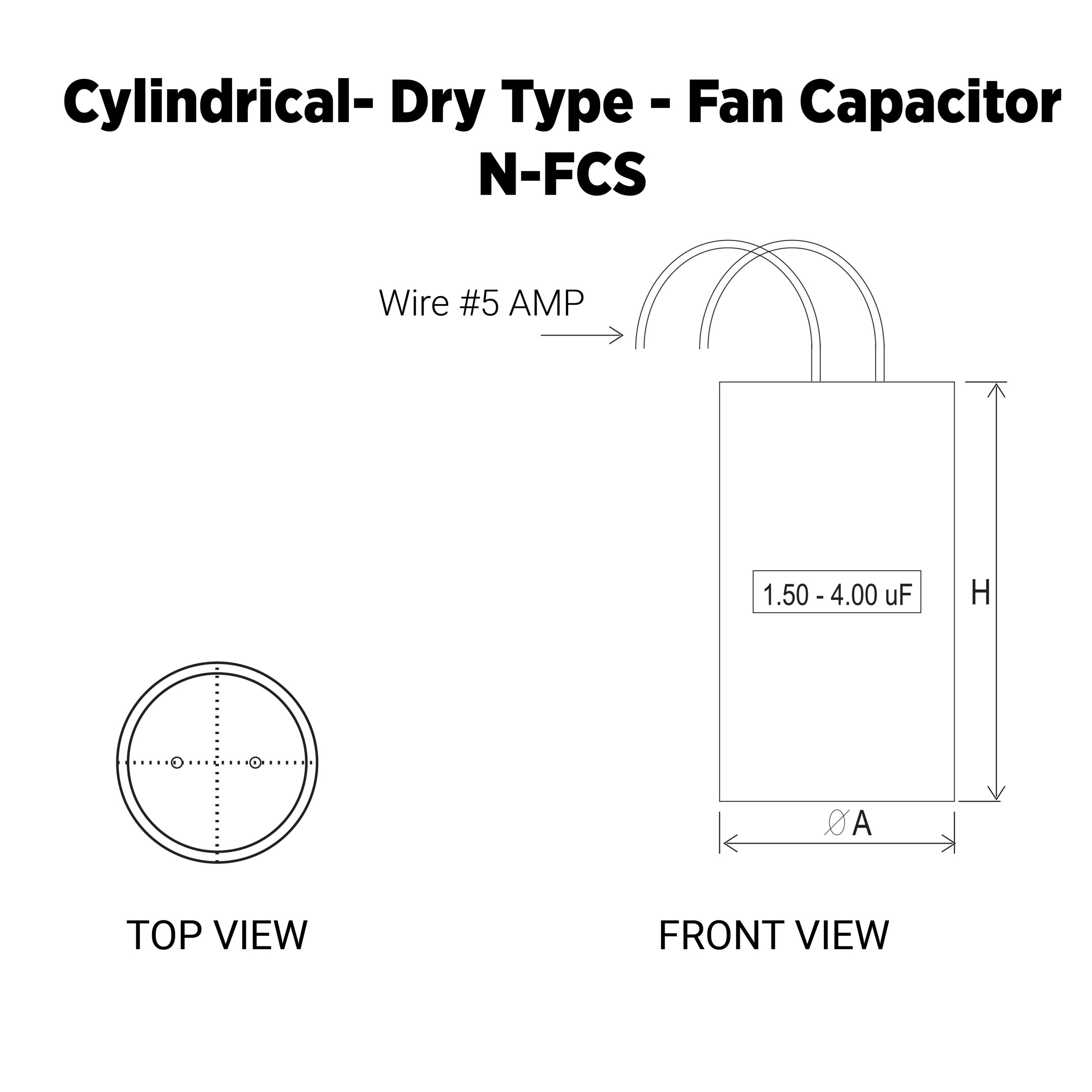

  • Our N-FCS series are soft polyurethane filled, aluminium & plastic cased capacitors with wire and lug type construction.
  • All capacitors in this series conform to “NO PCB”, RoHS & REACH compliance.
  • These capacitors are normally used for Ceiling Fan, Table fan as well as coolers.

CONSTRUCTION:

  • Dielectric: polypropylene film
  • Plastic case with press fit type
  • Aluminium case with press fit type / epoxy top sealing
  • Polyurethane resin
  • Dry type

TYPICAL APPLICATIONS:

  • For general sine wave applications, mainly as Ceiling Fans, Table Fans, Wall Fans & Exhaust Fans etc.

FEATURES:

  • Self-healing properties
  • Low dissipation factor
  • S0/S3/P0 safety class
  • High insulation resistance

TERMINALS :

  • Fast on terminals (single fast-on, double fast-on)
  • Flexible lead wire
  • Insulated cable or wire with sleeve

APPROVALS:

  • TECHNICAL SPECIFICATIONS



    Reference Standard
    IS 1709 / IEC 60252Rated CapacitanceCN0.8 uF to 10 uFTolerance%± 5 %Safety Class
    S0 / S3 / P0Rated voltageVN400 / 500 / 600 VRated FrequencyFN50 / 60 HzRated TemperatureTmax85 º CLife expectancy
    440V, +85°C (Class B / C)



    Max. Ratings

    Max Permissible Voltage
    1.1 x VNMax Permissible CurrentIn1.3 x In

    Test Data

    AC Test Voltage Terminal to TerminalVtt1.5 x UN, 2 Sec.AC Test Voltage between Terminals and ContainerVtc2000 V , 2sDissipation factor tan at+ 20 °C
    < = 2.0 x 10-3 (1KHz)



    Climatic Category
    25/85/21Lower Temperature Tminº C- 25Highest Temperature T maxº C+ 70/85Damp Heat Test TtsetDays21



    Design Data

    Plastic can & top
    Plastic material as per IEC 60252-1Aluminium can & top
    Aluminium material as per IEC 60252-1
