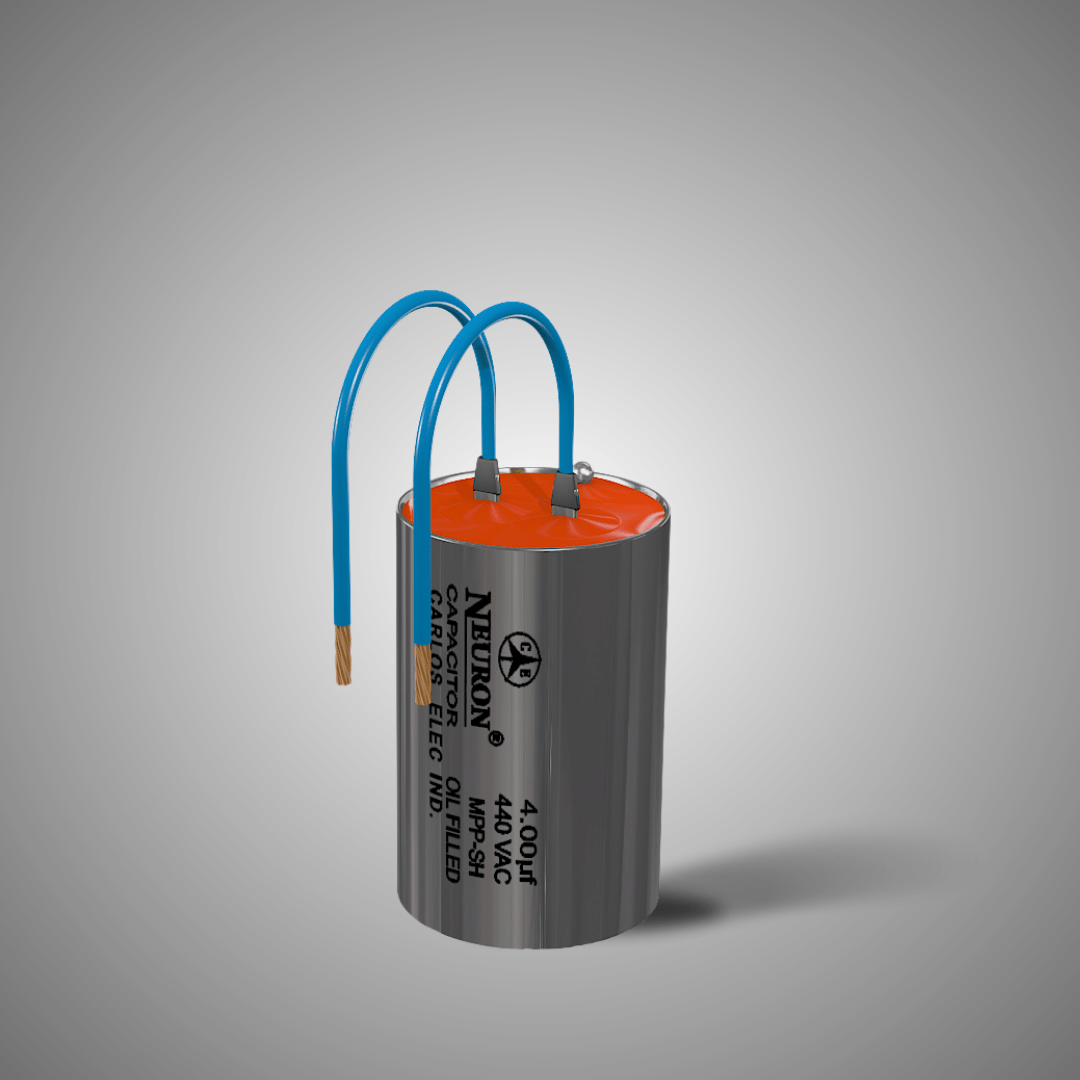

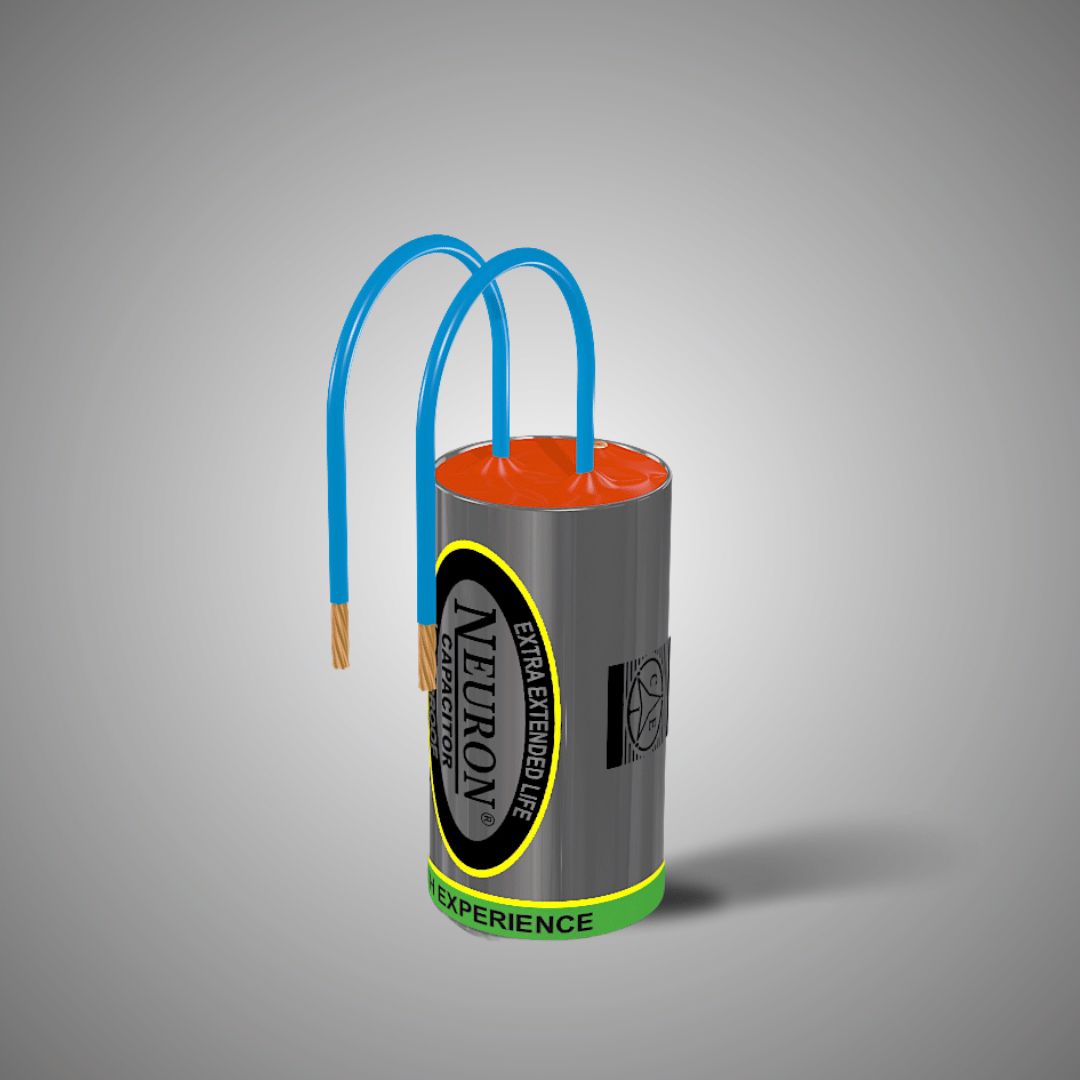

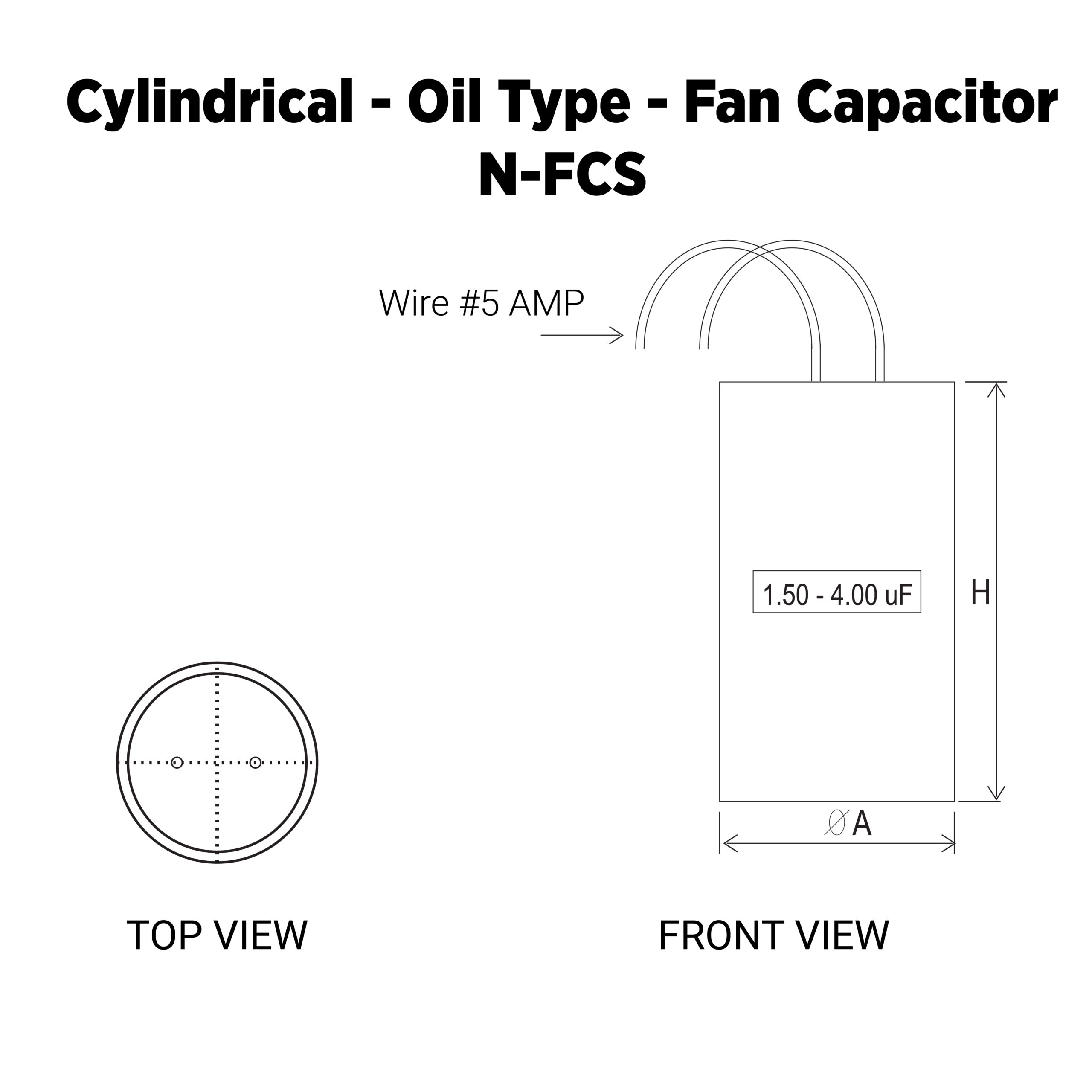

Oil Type - Fan Capacitors
- Our N-FCS series are Oil filled, aluminium cased capacitors with wire and lug type construction.
- All capacitors in this series conform to “NO PCB”, RoHS & REACH compliance.
- These capacitors are normally used for Ceiling Fan, Table fan as well as coolers.
CONSTRUCTION:
- Dielectric: polypropylene film
- Aluminium case Hermetically sealed with PU topping / epoxy top sealing / leakproof
- Oil Filled / Jelly Filled
TYPICAL APPLICATIONS:
- For general sine wave applications, mainly as Ceiling Fans
MOUNTING PARTS:
- Plain can
FEATURES:
- Self-healing properties
- Low dissipation factor
- S0/S3/P0 safety class
- High insulation resistance
TERMINALS :
- Fast on terminals (single fast-on)
- Flexible lead wire
APPROVALS:
-
TECHNICAL SPECIFICATIONS
Reference Standard IS 1709 / IEC 60252 Rated Capacitance CN 1.5 uF to 10 uF Tolerance % ± 5 % Safety Class S0 / S3 / P0 Rated voltage VN 400 / 500 / 600 V Rated Frequency FN 50 / 60 Hz Rated Temperature Tmax 85 º C Life expectancy 440V, +85°C (Class B / C) Max. Ratings Max Permissible Voltage 1.1 x VN Max Permissible Current In 1.3 x In Test Data AC Test Voltage Terminal to Terminal Vtt 1.5 x UN, 2 Sec. AC Test Voltage between Terminals and Container Vtc 2000 V , 2s Dissipation factor tan at+ 20 °C <= 2.0 x 10-3 (1KHz) Climatic Category 25/85/21 Lower Temperature Tmin º C – 25 Highest Temperature T max º C + 70/85 Damp Heat Test Ttset Days 21 Design Data Aluminium can & top Aluminium material as per IEC 60252-1
