Special Type - Fan Capacitors

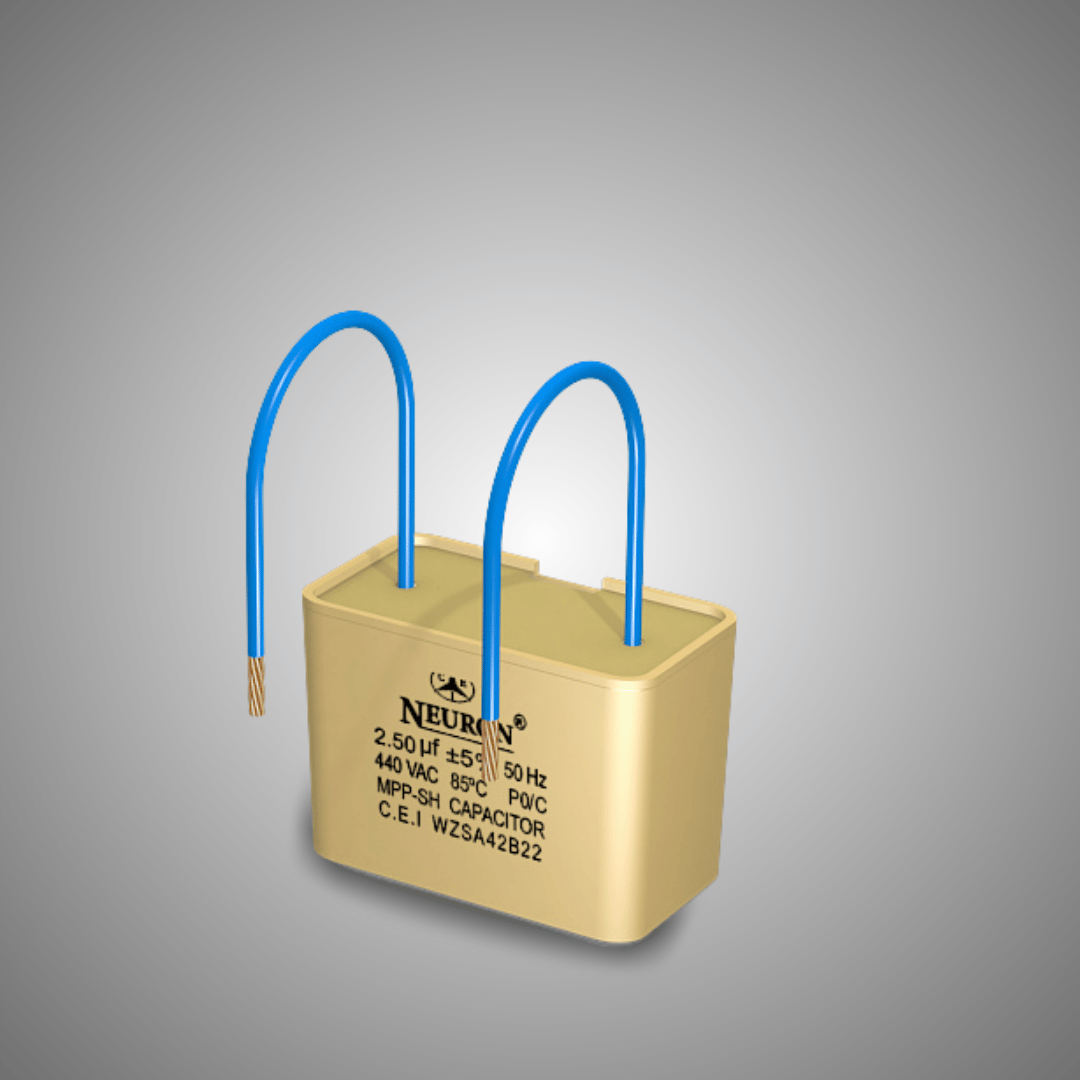

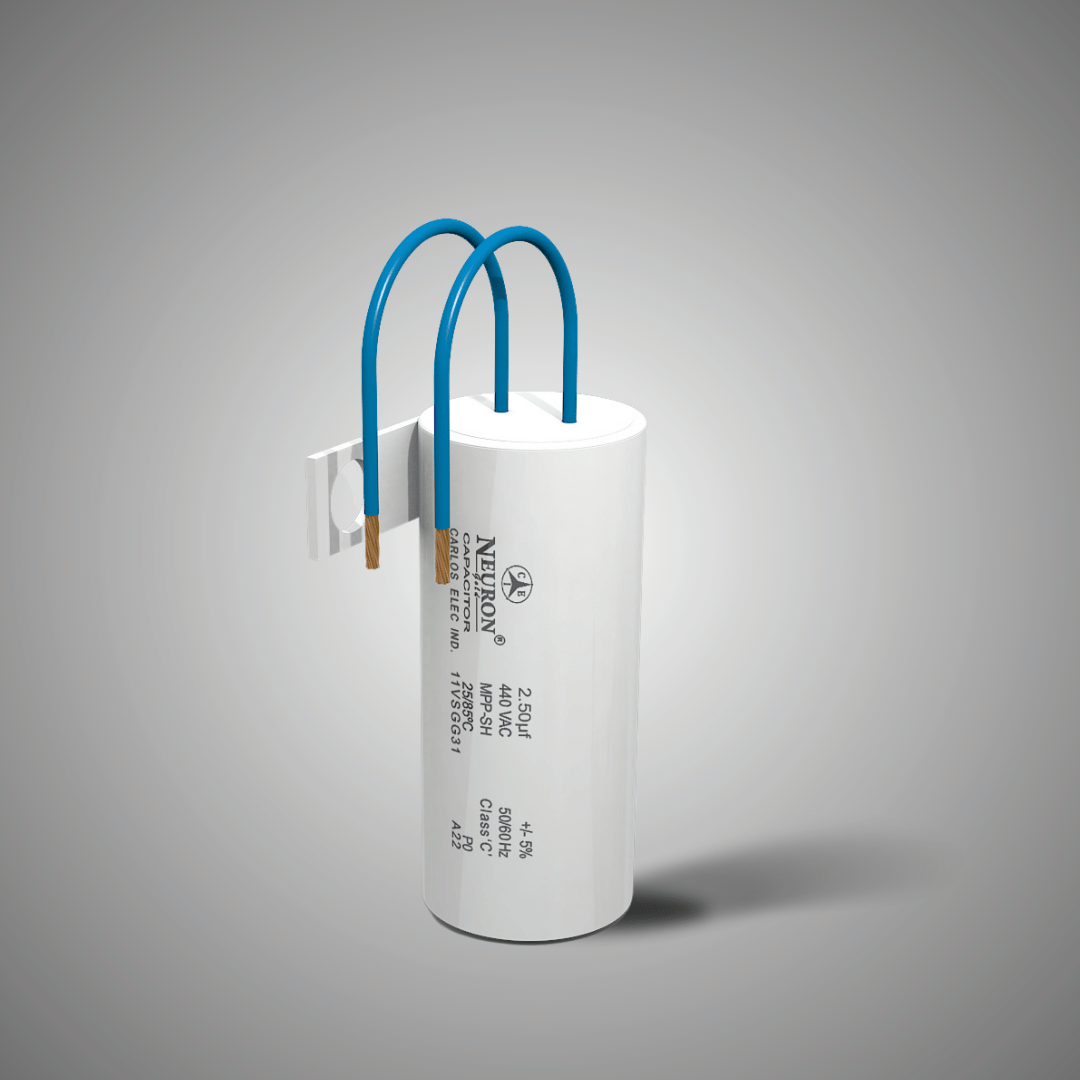

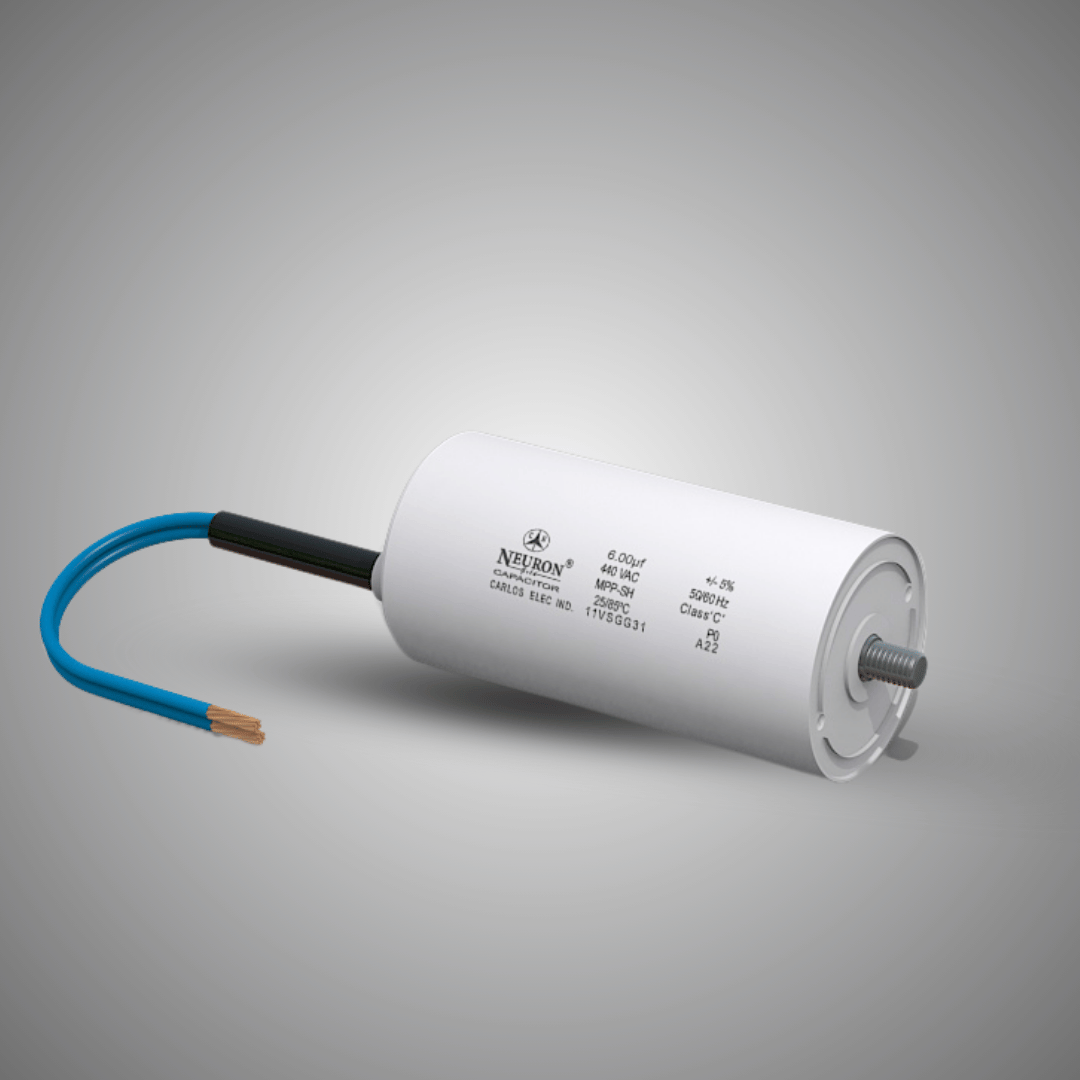

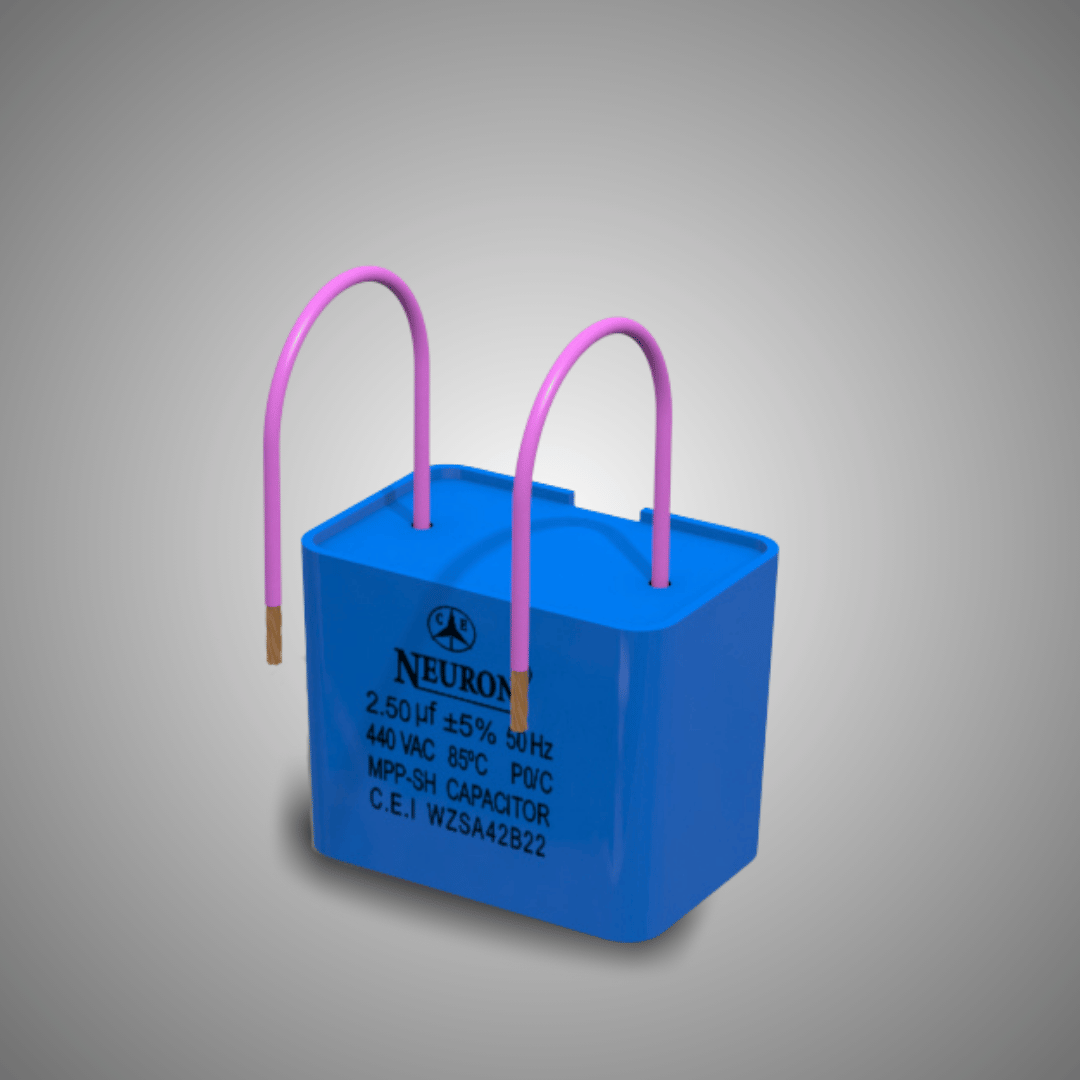

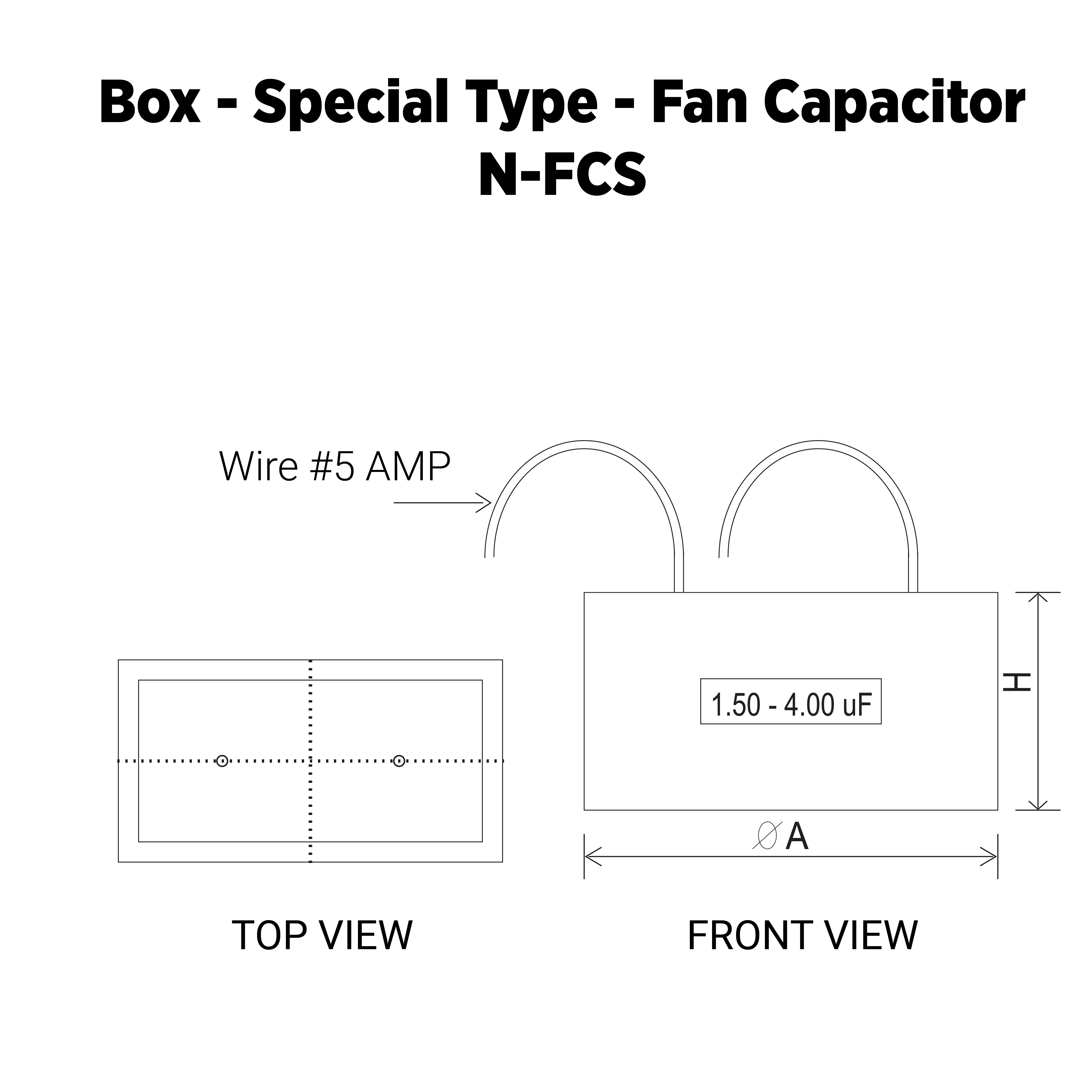

  • Our N-FCS series are soft polyurethane filled, aluminium & plastic cased capacitors with wire and lug type construction.
  • All capacitors in this series conform to “NO PCB”, RoHS & REACH compliance.
  • These capacitors are normally used for Ceiling Fan, Table fan as well as coolers.

CONSTRUCTION:

  • Dielectric: polypropylene film
  • Plastic case with plastic top
  • Polyurethane / Epoxy resin
  • Dry type

TYPICAL APPLICATIONS:

  • For general sine wave applications, mainly as Ceiling Fans, Table Fans, Wall Fans & Exhaust Fans etc.

MOUNTING PARTS:

  • Plain can

FEATURES:

  • Self-healing properties
  • Low dissipation factor
  • S0/S3/P0 safety class
  • High insulation resistance

TERMINALS :

  • Flexible lead wire

APPROVALS:

  • TECHNICAL SPECIFICATIONS

    Reference Standard
    IS 1709 / IEC 60252Rated CapacitanceCN0.8 uF to 10 uFTolerance%± 5 %Safety Class
    S0 / P0 / S3Rated voltageVN440 VRated FrequencyFN50 / 60 HzRated TemperatureTmax85 º CLife expectancy
    440V, +85°C:10000 h

    Max. Ratings

    Max Permissible Voltage
    1.1 x VNMax Permissible CurrentIn1.3 x In

    Test Data

    AC Test Voltage Terminal to TerminalVtt1.50 x UN, 2 Sec.AC Test Voltage between Terminals and ContainerVtc2000 V , 2sDissipation factor tan at+ 20 °C
    <= 2.0 x 10-3 (1KHz)

    Climatic Category
    25/85/21Lower Temperature Tminº C- 25Highest Temperature T maxº C+ 70/85Damp Heat Test TtsetDays21

    Design Data

    ABS / PBT / PB case & top disc material
    ABS / PBT / PB material as per IEC 60252-1

Dry Type Fan Capacitors
